Product Introduction

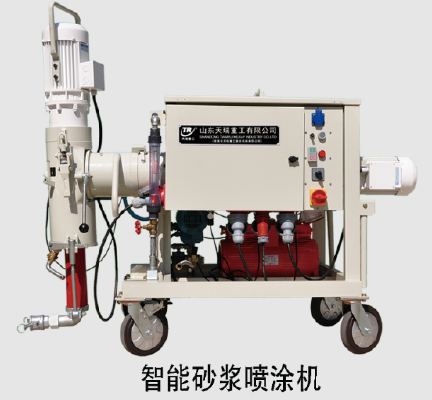

Our Intelligent Mortar Plastering Machine is a professional construction equipment which combines blending and plastering functions. It is mainly used to plaster mortar on the inside and outside walls. Blending the mortar powder with water and after secondary stirring, it presses mortar, and after mixed with air, spraying to the wall through the screw pump. Our machine avoids series problem when transport and store concrete mortar, and solves the low stickiness, hollow, waste and other disadvantages in the traditional human operation, highly improved the working efficiency.
- Place of Origin: Shandong
- Brand Name: Tianrui Heavy Industry
- Model Number: TR
Technique Parameter
Parameter name | Parameters units | Parameters | |
Blending Speed | L/min | 30 | |
Pumping Speed | L/min | 22 | |
Pumping Pressure | MPa | ≤3 | |
Pumping distance | vertical | m | ≥10 |
horizontal | m | ≥40 | |
Size of Sand Grain | mm | ≤2 | |
Voltage | V | 380 | |
Motor Power | KW | 5.5(Pumping)/3.0(blending) | |
Power of Water Pump | KW | 0.75 | |
Power of Air Compressor | KW | 0.9 | |
Volume of Hopper | L | 30 | |
Overall Weight | kg | 250 | |
External Dimension (L× W × H) | mm | 1350*640*1390 | |
