- Place of Origin: Shandong
- Brand Name: Tianrui Heavy Industry
- Model Number: G7,G10,G10F

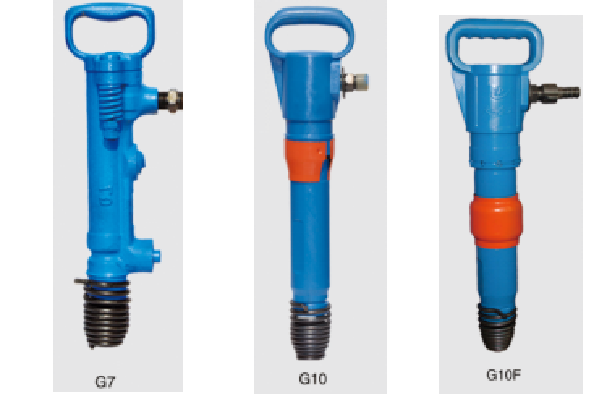

With mature technology, G7 pneumatic pick hammer is light, high-performance, easy-operated and has long operating life. Compared with similar kind products, G7 is lighter and more flexible, suitable for operating all rounds of work, especially in narrow, upward and high direction operation directions
The G10 is light, short, efficient, easy to maintenance and durable. It’s mainly used in breaking concrete, frozen earth or ice, in repairing, digging and ditching on the road and in coal mining. Besides, when we replaced its accessory parts, it also can be used for impacting operations like loading & unloading track pin.
G10F pneumatic pick hammer is antifreezing, more suitable for working in low temperature conditions, which is mainly used in cold plateau area.
- Place of Origin: Shandong
- Brand Name: Tianrui Heavy Industry
- Model Number: G7,G10,G10F
Product Type | G7 | G10 | G10F | |
Parameter name | Parameters units | Parameters | Parameters | Parameters |
Weight | Kg | 7 | 10 | 10 |
Length | Mm | 465 | 575 | 570 |
Shank dimensions(hex×length) | Mm | 26×82 | 24×70 | 24×70 |
Fixed type | Spring Clamp | Spring Clamp | Spring Clamp | |
Air pipe inner diameter | Mm | Ø19 | Ø 16 | Ø 16 |
Working pressure | MPa | 0.4~0.5 | 0.4~0.63 | 0.4~0.63 |
