- Place of Origin: Shandong
- Brand Name: Tianrui Heavy Industry
- Model Number: TRB
Product Introduction:

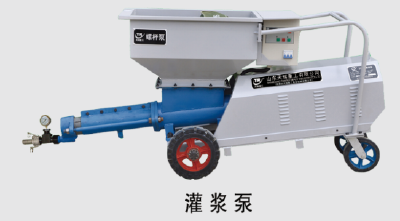

TRB grout pump is a professional engineering construction equipment used for pouring and squirting cement paste and concrete. It is widely applied to various grouting works like hydropower station underground caverns, subway, highway and railway tunnel, also is suitable for consolidation grouting and backfill grouting methods, pressure grouting for dam, side slope and soft rock.
Product Features:
Our TRB grout pump is high efficient, safe and easy to operate. It adopts the advanced screw pressurization technology, and can grout continuously while avoid the overlarge fluctuating pressure.
- Place of Origin: Shandong
- Brand Name: Tianrui Heavy Industry
- Model Number: TRB
Product Type | TRB25Grout Pump | TRB35 Grout Pump | ||||
Parameter Name | Parameters Units | Parameters | Parameters | |||
Producing Amount | L/H | 1500(cement mortar) | 2500( cement paste ) | 1800(cement mortar) | 3500(cement paste ) | |
Pumping Distance | vertical | M | 40(cement mortar) | 80( cement paste ) | 50(cement mortar) | 80(cement paste ) |
horizontal | M | 180 | 180 | |||
Motor Power | Kw | 4.0 | 5.5 | |||
Diameter of Sand | Mm | ≤3 | ≤3 | |||
water cement ratio (W/C) | ≥0.30 | ≥0.30 | ||||
Pressure of Grouting | MPa | 2.0-4.0 | 2.5-5.0 | |||
Volume of Hopper | L | 80 | 110 | |||
Overall Weight | Kg | 250 | 280 | |||
External Dimension (L× W × H) | Mm | 1700×560×800 | 1860×660×900 | |||
