Product Introduction:

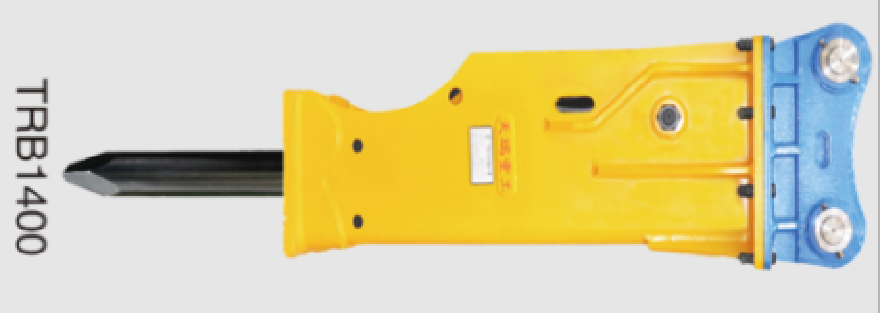

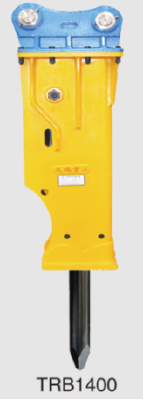

Installing in the excavating machine or loading machine, silence hydraulic breaker is a crushing equipment turning hydraulic energy to mechanical energy .It is widely used in not only mining, metallurgical engineering, railway, highway repair, cement pavement breaking, digging, but also used in crushing the rocks stones, highly improved the efficiency.
The Silence Type Breakers adopts low-noise shell and quakeproof system to protect the main engine. The unique chisel sliding sleeve decreases the aftersales service rate and increase the service life.
Product Features:
We produced complete specifications silence type breakers, it have the advantages of advanced design, great performance, high impact frequency, strong impact power, durable service, long life of wearing parts and low failure rate.
- Place of Origin: Shandng
- Brand Name: Tianrui Heavy Industry
- Model Number: TRB
Model/Parameters | Units | TRB680 | TRB1000 | TRB1400 | TRB1550 | TRB1650 |
weight | Kg | 295 | 861 | 1825 | 2635 | 2850 |
Length | mm | 1600 | 2326 | 2828 | 3255 | 3395 |
Drive oil flow | L/min | 40-70 | 80-110 | 120-180 | 180-240 | 200-260 |
Drive oil pressure | Kgf/cm² | 110-140 | 150-170 | 160-180 | 160-180 | 160-180 |
Impact frequency | b.p.m | 500-900 | 350-700 | 350-500 | 300-450 | 250-400 |
chisel diameter | mm | Φ68 | Φ100 | Φ140 | Φ155 | Φ165 |
chisel length | mm | 700 | 950 | 1300 | 1400 | 1500 |
Suitable excavator | ton | 4-7 | 11-16 | 18-26 | 28-35 | 30-40 |
