- Place of Origin: Shandong
- Brand Name: Tianrui Heavy Industry
- Model Number: TRB
Product Introduction
Installing in the excavating machine, loading machine , triangular hydraulic breaker is a crushing equipment turning hydraulic energy to mechanical energy . It is widely used in mining, metallurgical engineering, railway, highway repair, cement pavement breaking, digging. It can efficiently crush the rock and stone, highly improved the efficiency.
Product Features:
Tianrui hydraulic breaker with complete specification, advanced design,high performance,strong power,durable wearing parts and low failure rate, has enjoy high reputation and became the preferred product of our customers.
- Place of Origin: Shandong
- Brand Name: Tianrui Heavy Industry
- Model Number: TRB
Model/Parameters | Weight (kg) | Length (mm) | Drive oil flow (l/min) | Drive oil pressure(kgf/c㎡) | Impact Frequency (b.p.m) | Chisel Dia. (mm) | Suitable excavator(ton) |

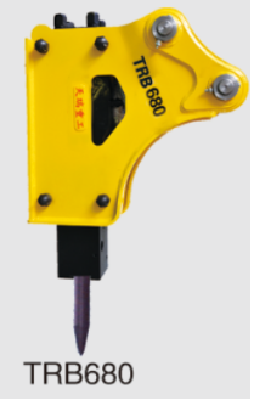

TRB680 | 258 | 1415 | 40-70 | 110-140 | 500-900 | Φ68 | 4-7 |
TRB750 | 332 | 1480 | 50-90 | 120-150 | 400-800 | Φ75 | 6-9 |
TRB850 | 557 | 1735 | 60-100 | 130-160 | 400-800 | Φ85 | 7-14 |
TRB1000 | 753 | 1994 | 80-110 | 150-170 | 350-700 | Φ100 | 10-15 |
TRB1350 | 1653 | 2367 | 130-150 | 160-180 | 400-800 | Φ135 | 18-26 |
TRB1400 | 1774 | 2414 | 120-180 | 160-180 | 350-500 | Φ140 | 18-26 |
TRB1500 | 2221 | 2519 | 150-190 | 160-180 | 350-700 | Φ150 | 27-35 |

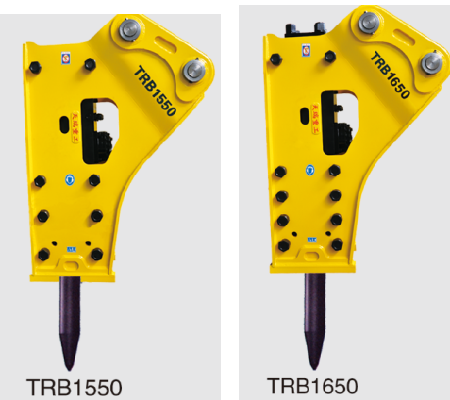

TRB1550 | 2569 | 2760 | 180-240 | 160-180 | 300-450 | Φ155 | 28-35 |
TRB1650 | 2752 | 2816 | 200-260 | 160-180 | 250-400 | Φ165 | 30-45 |
TRB1750 | 3912 | 3176 | 210-290 | 160-180 | 200-350 | Φ175 | 40-55 |
TRB1850 | 4866 | 3425 | 200-350 | 170-230 | 110-350 | Φ185 | 45-80 |
