Product Introduction:

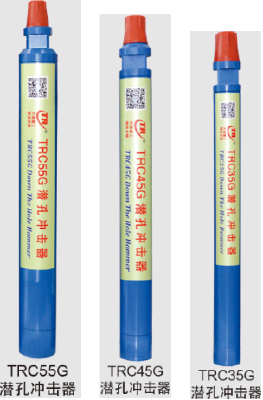

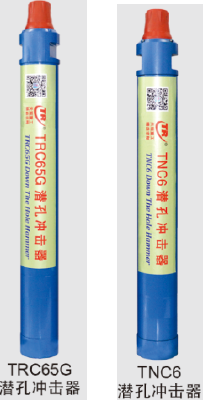

Tianrui TRC DTH hammers can match pneumatic drill rig like CM351 downhole drill rig, and can be widely used for drill blasthole in mining, harbor construction, quarrying and roading. They can also drill downhole in landslide reinforcement and wells and ground-source air conditioners projects.
Product Features:
1.Our TRCDTH hammer get ideal energy transmission, high efficiency, low air consumption, stable pressure and good wear resistance. During our tests at the construction site, our DTH hammers can reach to the advanced level in China for its speed and service life.
- Place of Origin: Shandong
- Brand Name: Tianrui Heavy Industry
- Model Number: TRC65G,TNC6,TRC55G,TRC45G,TRC35G,TRC90,TRC930K
Model | Air Pressure (MPa) | Air Consumption (m³/min) | Length (mm) | Weight(kg) | Locking Jaw (mm) | Acceptable Bits (mm) |
TRC90 | 0.5-0.7 | 0.5-5 | 855 | 22 | 60×60 | Φ90-100 |
TRC35G | 1.0-2.5 | 3.8-7.5 | 888 | 25 | 60×60 | Φ90-105 |
TRC45G | 1.0-2.5 | 6-15 | 1011 | 43.2 | 65×65 | Φ110-135 |
TRC55G | 1.0-2.5 | 7-19 | 1110 | 69 | 74×74 | Φ135-155 |
TRC65G | 1.0-2.5 | 9-26 | 1238 | 98 | 101×101 | Φ155-190 |
TRC75G | 1.0-2.5 | 11-27 | 1188 | 115 | 101×101 | Φ175-216 |
TRC85G | 1.0-2.5 | 12-28 | 1359 | 175 | 148×148 | Φ203-254 |
TRC88G | 1.7-3.0 | 23(18 bar) | 1420 | 190 | 148*148 | 203*254 |
TRC100G | 1.0-2.5 | 22-55 | 1502 | 290 | 176×176 | Φ254-311 |
